CASE STUDIES

15,000kVA Power station with continuous operation

27 May - 2026

To provide a safe, permanent power supply. The public grid will cover any possible emergencies in exceptional situations when the generator plant comes to a complete halt.

Solution

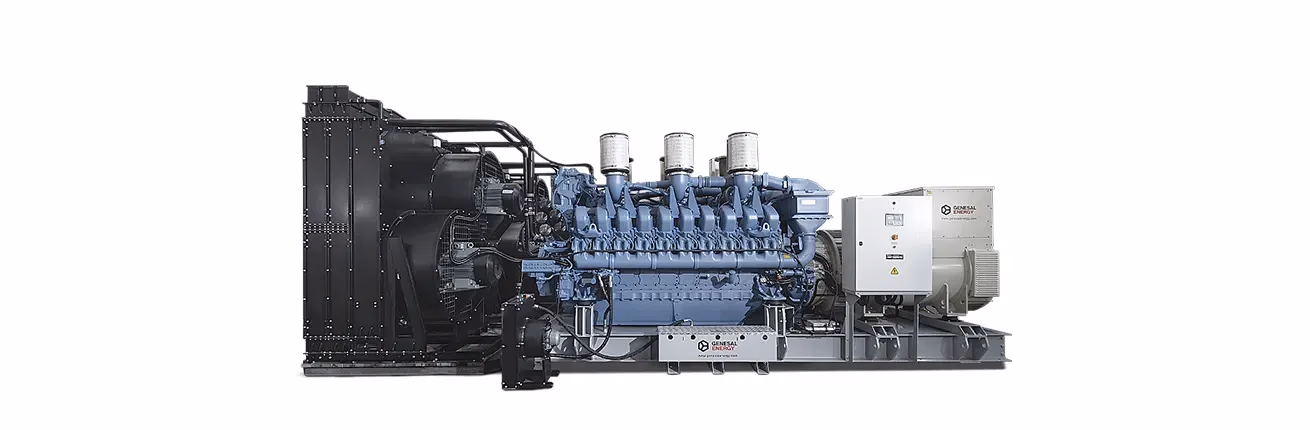

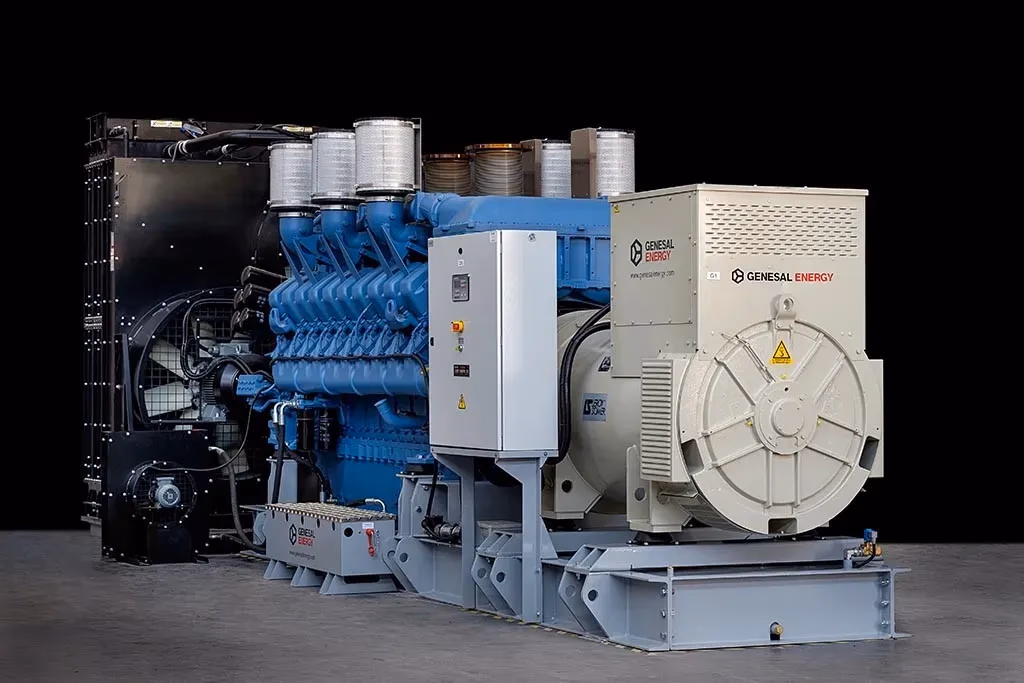

Based on the loads and the operating system of the plant, a solution was adopted using installations of 6×2,500 kVA working in parallel, with one unit always in reserve. The equipment is rotated according to the number of operating hours.

Features

  • Can operate in parallel, delivering a total power output of 16.5 MVA.
  • Includes protection switchgear and transformers to step down voltage from 690 V to 400 V.
  • Individual control using ComAp intelligent system.
  • Touchscreen in the electrical control room.
  • Remote master control screen at the factory central monitoring point.
  • Siemens power switchboards rated at 6,300/6,300 A.
  • Secure command and control network with UPS.
  • PLC for managing load input into the installation.

PDF Case study, 15,000 kVA Power Station with continuous operation.

Project summary

  • Location: Dairy Products. Manufacturing Plant.
  • Required power: 12,500 kVA
  • Installed power: 2,500 kVA x 6 = 15,000 kVA (continuous).
  • Special configuration: Working in parallel depending on the power requirements of the factory.
